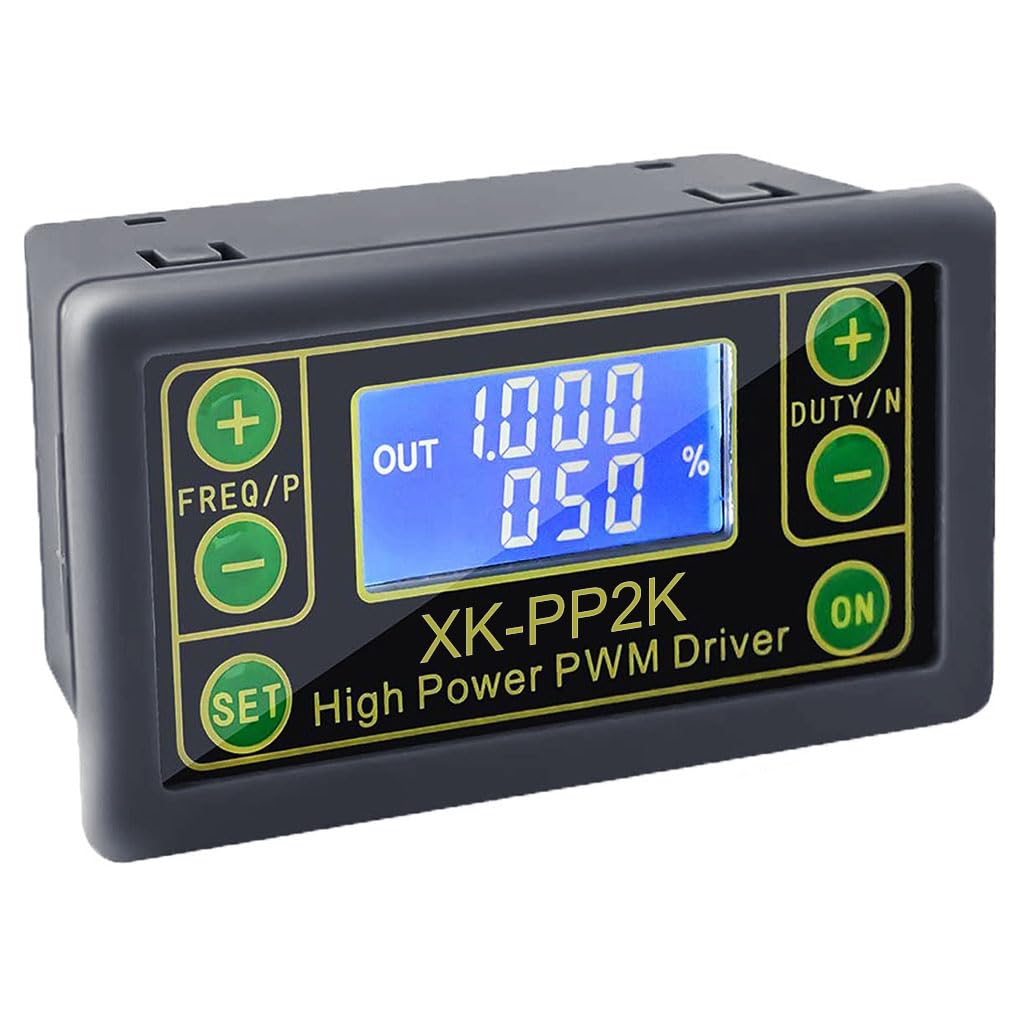

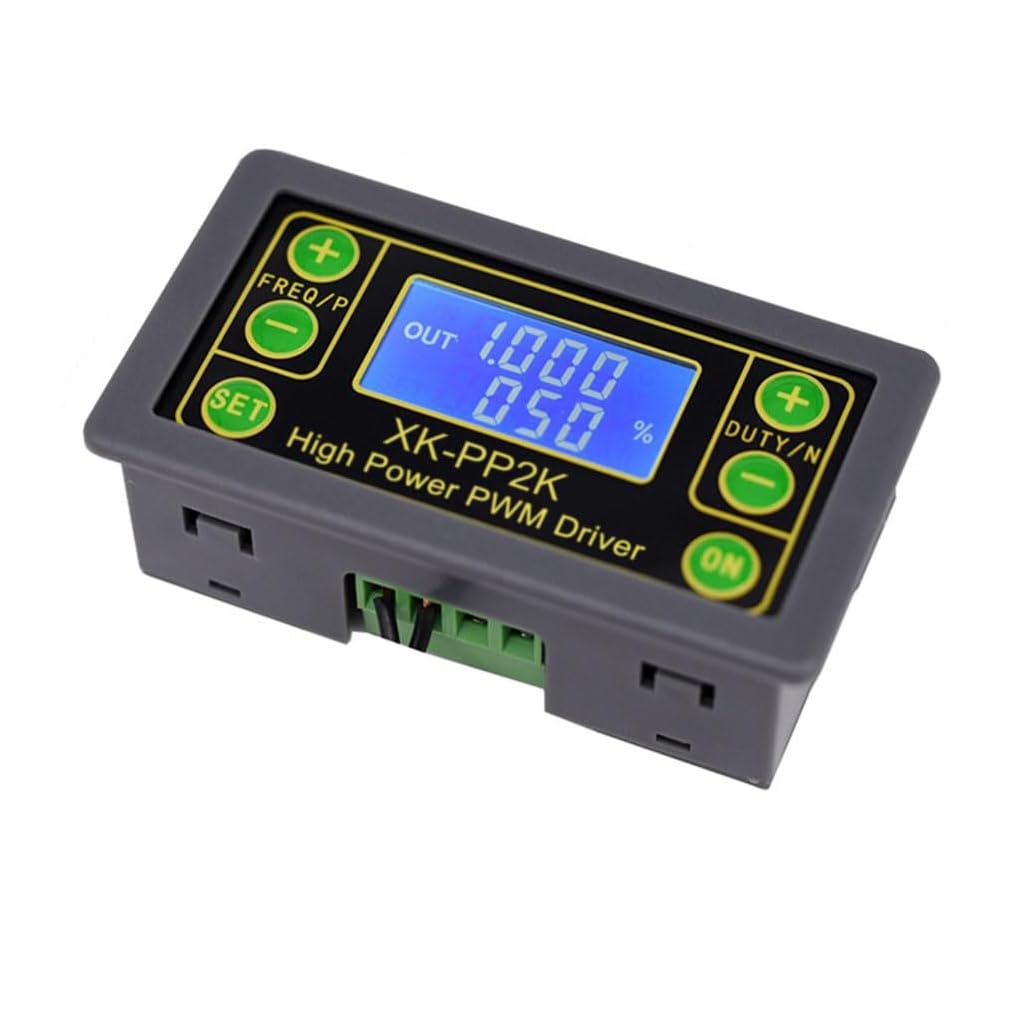

Serplex® Stepper Motor Driver Controller 8A Dual Mode Function Signal Generator, 1Hz-150KHz PWM Motor Speed Regulation/LCD Pulse Frequency Cycle Module Adjustable Driver Module Signal Generator

Regular price Rs. 856.00
Sale price Rs. 856.00 Regular price Rs. 1,499.00
Sale Sold out
Tax included.

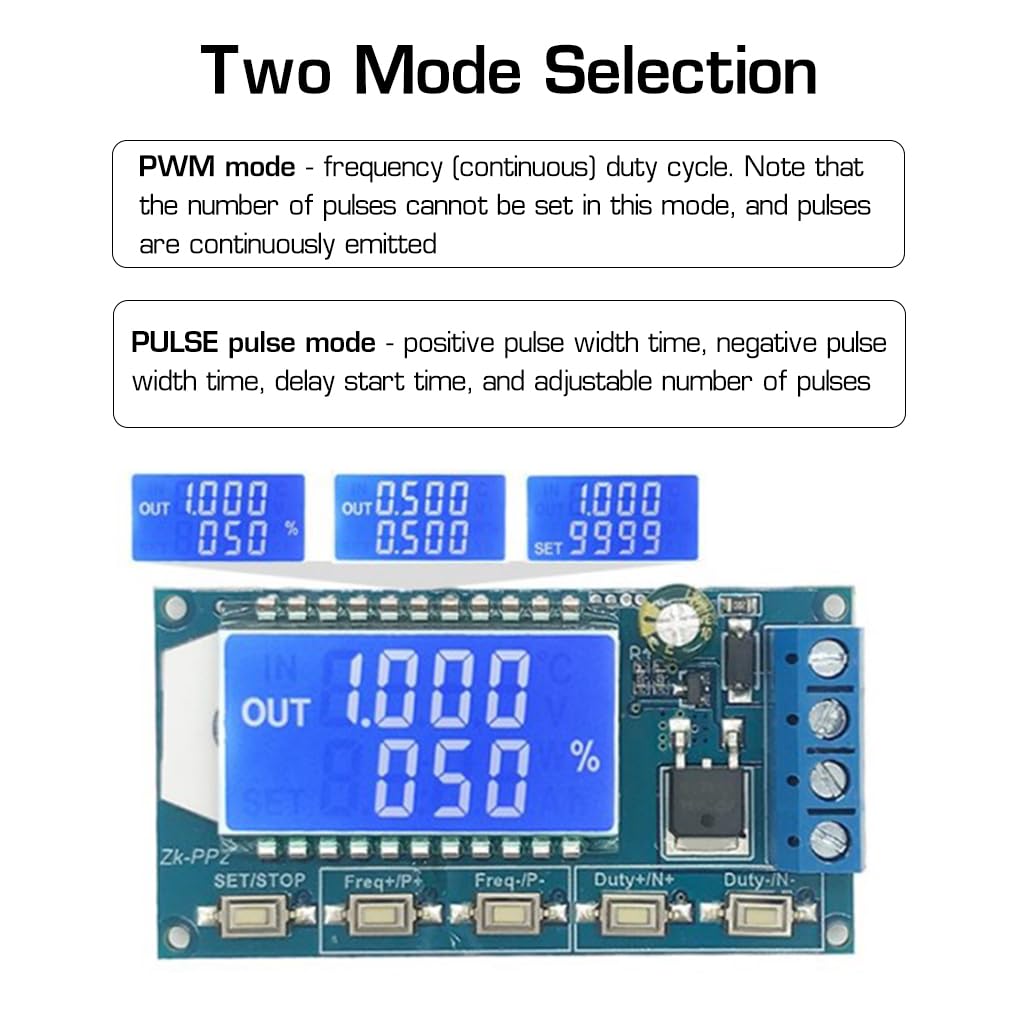

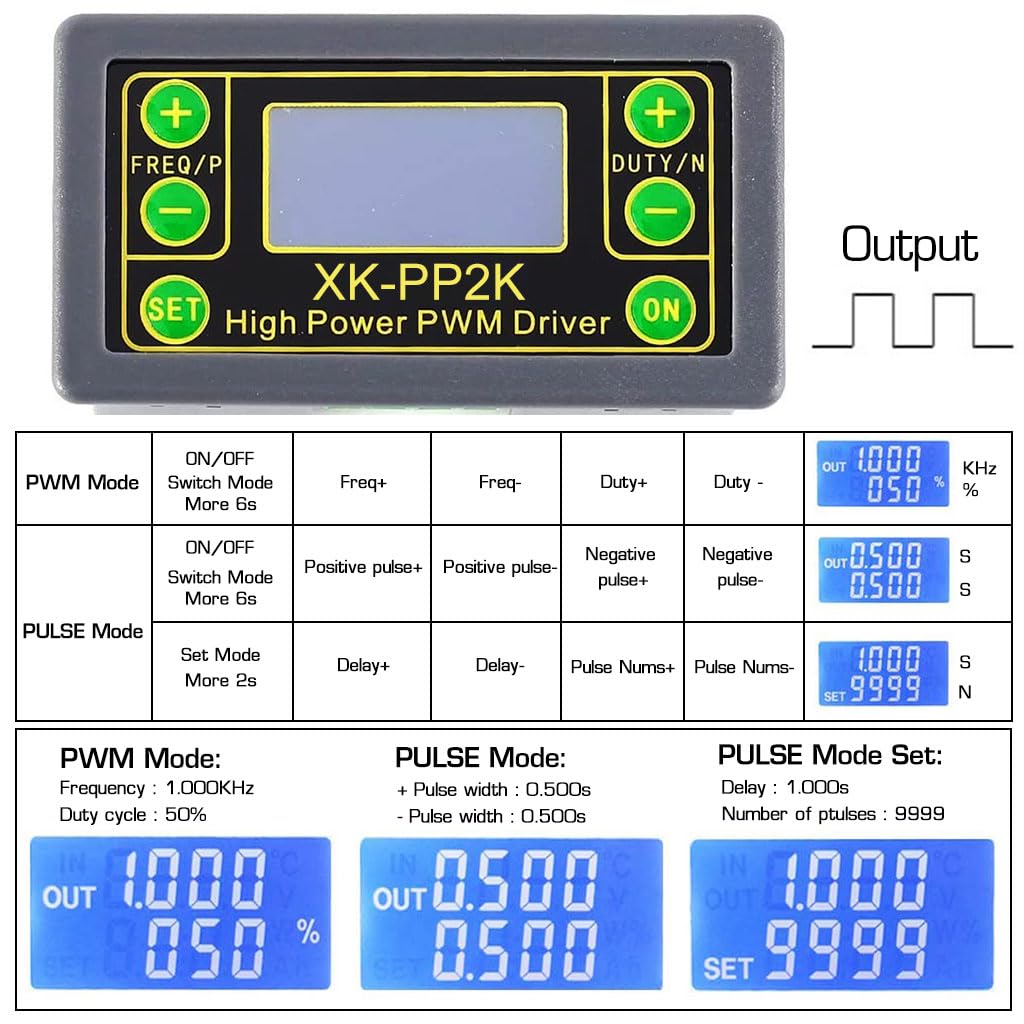

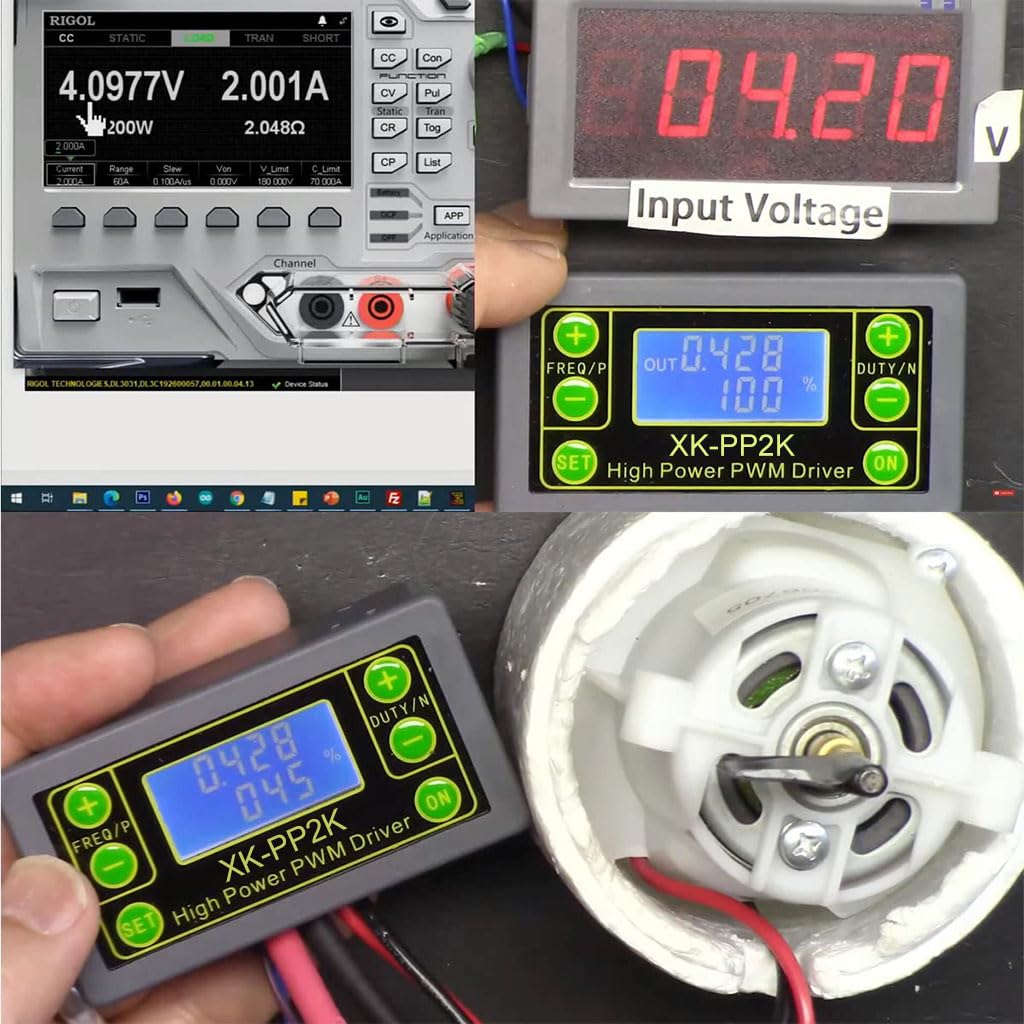

  • TWO MODES, UNLIMITED CONTROL: XK-PP2K PWM Pulse Frequency Generator can choose PWM mode or PULSE mode. PWM mode: adjusting frequency and duty cycle, Note: The number of pulses cannot be set in this mode. PULSE mode: positive pulse width time, negative pulse width time, power-on delay start time, the number of pulses is adjustable. Only one mode can be used at a time, but the two modes can be switched at any time.
  • PRODUCT SPECIFICATIONS: 1. Working voltage: 3.3~30V (note that the positive and negative poles should not be reversed, otherwise it may burn) 2. Frequency range: 1Hz~150KHz, the accuracy is about 1%. 3. Duty cycle range: 0-100%, 1% step 4. Number of pulses: 1-9999, or infinite (display '---' means infinite) 5. Delay output time: 0.000s-9999s, the minimum can be set to 1ms 6. Positive and negative pulse width length: 0.000s-999s, the minimum can be set to 1ms.
  • POWERFUL MOTOR CONTROL: LED brightness, motor speed, frequency, duty cycle all can be adjusted. All parameters will be automatically saved after the setting is completed and will not be lost even the power is turned off.

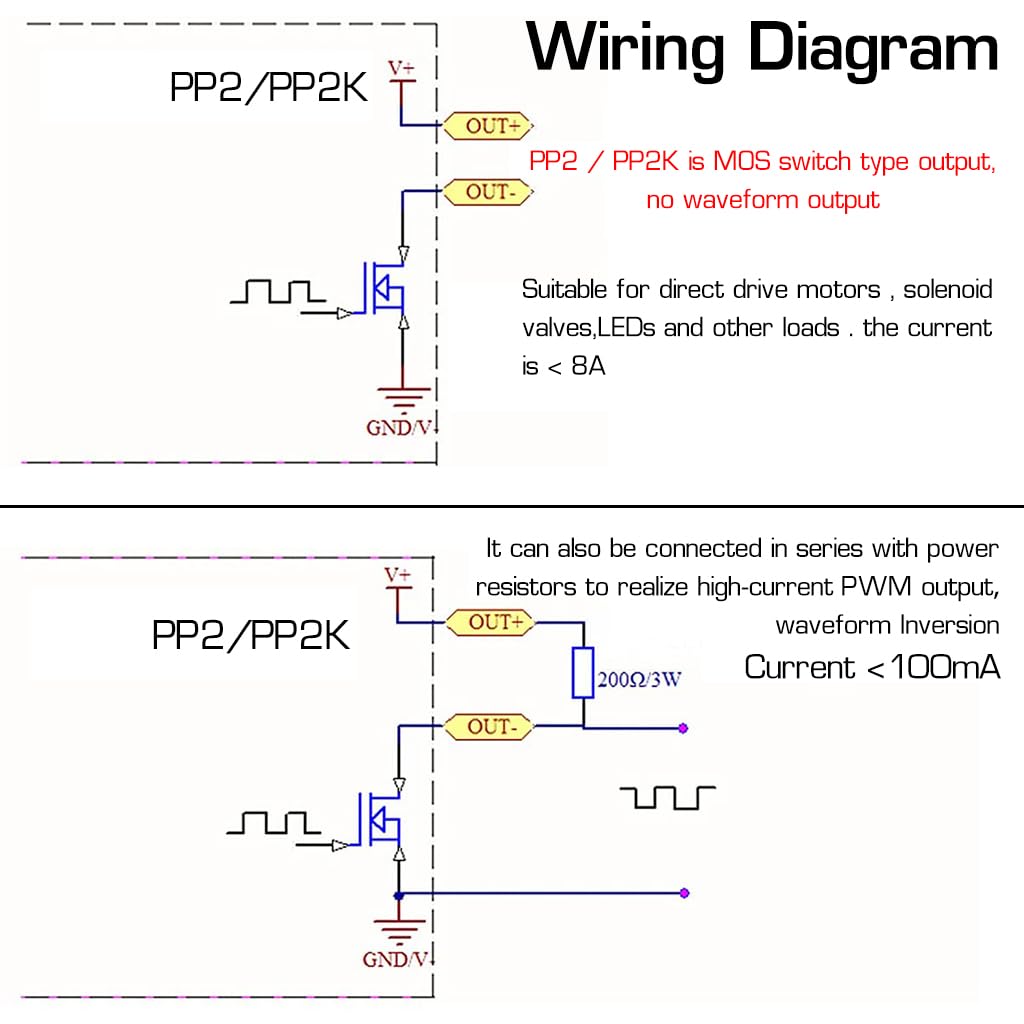

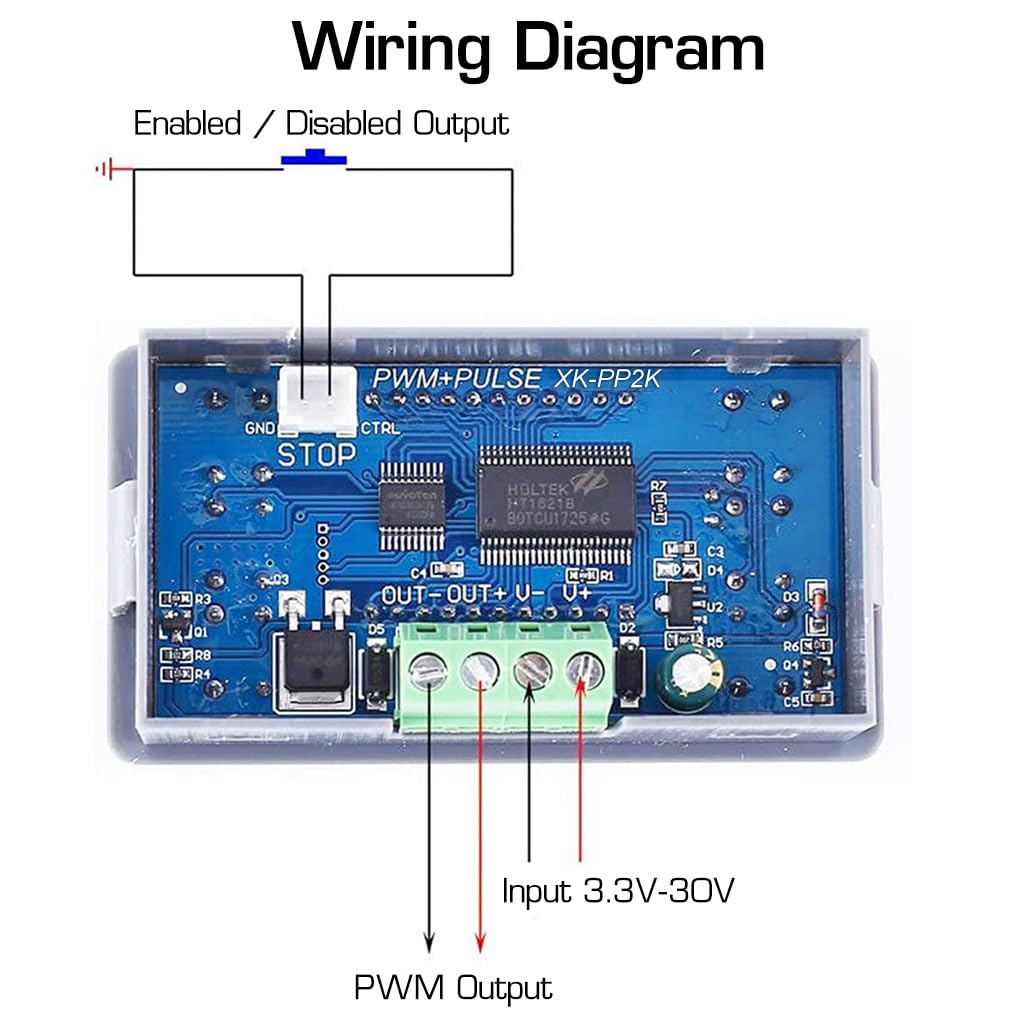

  • WIDE VOLTAGE RANGE & DIRECT LOAD DRIVING: This high-quality controller supports DC3.3~30V voltage range, delivering a maximum output current of 8A. Avoid reversing the positive and negative poles to prevent damage. Drive various loads including LEDs, motors, and solenoid valves directly with ease. Adjust pulse number, frequency, duty cycle, and cycle delay effortlessly.
  • VERSATILE APPLICATIONS: PWM Pulse Frequency Generator is perfect for fatigue tests, power-off testing, PWM signal generation, driving lamps, motors, solenoid valves, and more. Ideal for servo motors, stepper motors, and electric jaws. Unlock endless possibilities with this versatile controller. Function Signal Generator can be matched with the driver to realize dimming, speed regulation, control solenoid valve, etc. It can directly drive loads such as electric light motor solenoid valve.
